In the realm of electric motors, both frameless DC motors and brushless motors are recognized for their high efficiency, reliability, and versatility. However, they cater to distinct applications and exhibit unique design and performance characteristics. Understanding the key differences between these two motor technologies is essential for selecting the right solution for a given application.

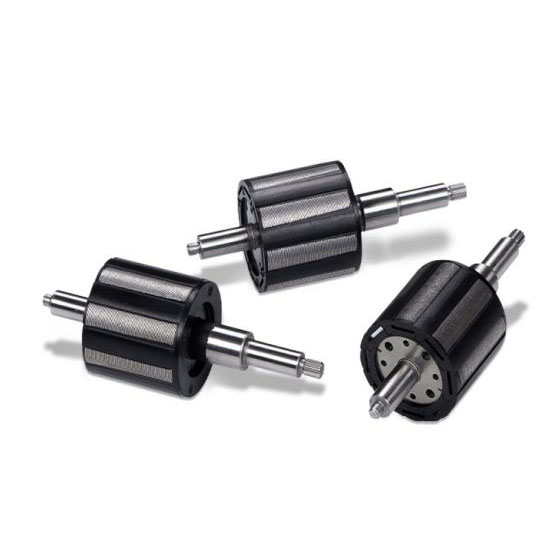

Frameless DC motors are a specialized type of motor that consists of only the rotor and stator, without an external housing, shaft, or bearings. This design allows them to be integrated directly into a larger mechanical system, making them particularly attractive for applications requiring lightweight, compact, and customizable solutions.
The absence of a frame in frameless DC motors offers flexibility in design. Engineers can embed these motors into existing structures, achieving a seamless integration that maximizes performance while minimizing weight and space. These motors are commonly used in robotics, medical devices, aerospace, and other high-precision fields where customized configurations are paramount.
Brushless motors, or BLDC motors, are permanent magnet motors that eliminate the need for brushes and commutators. Instead, they rely on electronic commutation to control the current flow through the motor windings, ensuring efficient and precise operation. These motors typically come as complete units, including a protective frame, bearings, and often built-in encoders or controllers.
Brushless motors are prized for their long lifespan, minimal maintenance requirements, and high efficiency. Their robust design allows them to perform reliably across a wide range of industries, including industrial automation, electric vehicles, and consumer electronics. The self-contained nature of brushless motors simplifies installation and makes them a popular choice for standalone applications.
The differences between frameless DC motors and brushless motors arise from their construction, intended use, and integration capabilities.
1. Construction and Design:
Frameless DC motors consist solely of the rotor and stator. This minimalist design requires the surrounding system to provide structural support, such as housing, bearings, and a shaft. On the other hand, brushless motors come as fully assembled units, complete with an enclosure, bearings, and often integrated controllers, making them ready for immediate use.
2. Integration and Customization:
Frameless DC motors excel in applications where the motor must be tightly integrated into the machinery. Their modular nature allows for custom configurations tailored to specific size, torque, or speed requirements. In contrast, brushless motors are designed for plug-and-play use, offering convenience but less flexibility in terms of customization.
3. Weight and Space Efficiency:
By eliminating the frame and associated components, frameless DC motors are significantly lighter and more compact than brushless motors. This makes them ideal for applications where reducing weight and size is critical, such as in drones, surgical robots, or spacecraft.
4. Durability and Environmental Protection:
Brushless motors, with their enclosed design, are well-suited for harsh environments, providing protection against dust, moisture, and debris. Frameless DC motors, lacking an enclosure, depend on the system they are integrated into for environmental protection, which may limit their use in exposed conditions.
5. Ease of Use:
Brushless motors are self-contained units that are straightforward to install and operate, making them ideal for applications requiring quick deployment. Frameless DC motors, in contrast, demand more engineering effort for integration, as they must be carefully assembled into the system with additional components like bearings, shafts, and protective enclosures.
Frameless DC motors are the go-to solution for applications requiring high levels of customization and integration. They are particularly advantageous in situations where space and weight constraints are paramount. For example, in robotics, frameless motors allow for direct-drive configurations, which enhance positional accuracy and reduce mechanical complexity.
These motors are also common in aerospace applications, where every gram matters, and in medical devices like surgical robots, where precise motion in compact spaces is essential.
Brushless motors are the preferred choice for applications requiring durability, reliability, and ease of implementation. Their enclosed design makes them highly versatile and suitable for a wide range of environments, from factory floors to outdoor machinery. Their low maintenance requirements and high efficiency make them ideal for electric vehicles, industrial automation systems, and consumer products like fans or drones.
Brushless motors are particularly advantageous when a ready-to-use, self-contained motor is needed, as they simplify the design and installation process without sacrificing performance.
Conclusion
While frameless DC motors and brushless motors share some similarities in their high efficiency and advanced performance, they are designed for different purposes. Frameless DC motors prioritize customization, lightweight design, and seamless integration into complex systems. In contrast, brushless motors emphasize durability, versatility, and ease of use as standalone components.
Selecting the right motor depends on the specific needs of your application. Frameless DC motors shine in high-precision, space-constrained projects, while brushless motors provide a robust, reliable solution for general-purpose and industrial applications. By understanding these differences, engineers can make informed decisions that optimize performance and efficiency.
